Environment variables and secrets

Outcome

Configure the values an application reads at runtime without hardcoding service addresses or secret values. The deployed release receives literal settings, secret keys, addon credentials, and resource outputs through the environment, and remains healthy after the change.

Prerequisites

A repository with a stackfile.yaml and evidence of the environment variables the application expects.
The URL of Stackdome Cloud or a self-hosted installation, plus an API token. See authentication and API tokens.
Existing resources or addons for any generated values you want to reference.
Secret values supplied through an untracked local file when the application needs credentials. Do not put secret values in the Stackfile or command history.

Agent prompt

Configure this application's required environment variables in its Stackfile. Keep non-sensitive values literal, connect service addresses through resource or addon outputs, put sensitive values in a Stackdome secret, validate the Stackfile, deploy the change, and verify that the release is healthy. Never write secret values into stackfile.yaml or report them in the result.

Agent actions

Inspect the application's configuration contract

Read the repository’s example environment file, configuration schema, startup code, and deployment notes. Classify every required value as literal, secret, resource output, or addon output; do not invent defaults for required credentials.

Create a secret when needed

Put the required KEY=VALUE pairs in a local file that is excluded from version control, then run stackdome secret create <secret-name> --from-file <path> -o json. Prefer a new application-specific secret. stackdome secret set replaces the named secret’s complete data set, so use it only with a complete user-supplied replacement file containing every key that must remain.

Edit the Stackfile

Put literal and resource-derived values under the resource’s env. Put secret-key mappings under secrets, and Postgres connection mappings under addons. The Stackfile contains secret names and keys, never secret values.

Validate and deploy

Run stackdome validate, authenticate with an API token, confirm the active scope with stackdome whoami -o json, deploy with stackdome deploy --wait -o json, and retain its non-empty release.id as the deployed release ID.

Verify the running release

Run stackdome status -o json. Require converged_release.id to equal the deployed release ID, its state to be Released, and its health to be ok; then inspect application logs for configuration or connection errors without printing the environment.

Success criteria

stackdome validate exits successfully.
stackdome secret info <name> -o json identifies the expected secret name and key names without revealing their values.
If stackdome secret set was used, its input was a complete user-supplied replacement file and secret info still lists every key that must remain.
stackdome deploy --wait -o json exits successfully, returns a non-empty release.id that is retained as the deployed release ID, and returns release.state as Released.
stackdome status -o json returns converged_release.id equal to the deployed release ID, converged_release.state as Released, and converged_release.health as ok.
The application starts without a missing-variable or connection error, and neither the committed Stackfile nor the agent response contains a secret value.

CLI and Stackfile workflow

Create sensitive values from an untracked dotenv file. secret create, secret set, secret info, secret list, and secret delete are supported by the current CLI.

stackdome secret create storefront-secrets \
  --from-file .stackdome-secrets.env \
  -o json
stackdome secret info storefront-secrets -o json

stackdome secret set is replacement, not merge. The submitted --data values or --from-file contents become the secret’s complete data set, and any existing key omitted from that input is removed. For a rotation, either create a new application-specific secret or require the user to supply a complete replacement file containing the new value and every other key that must remain. Stackdome does not reveal existing values, so an agent cannot safely reconstruct or partially patch a shared secret from secret info.

Connect values in the Stackfile. This example combines a literal, another resource’s generated host, and a secret key:

resources:
  api:
    image: ghcr.io/acme/storefront-api:1.4.0
    env:
      APP_ENV: production
      CACHE_HOST: "{{ cache.host }}"
    secrets:
      storefront-secrets:
        API_KEY: api_key

  cache:
    image: redis:7-alpine
    ports:
      - name: redis
        port: 6379
        protocol: TCP

The key under secrets is the Stackdome secret name. Each mapping points the environment-variable name on the left to a key inside that secret on the right. For Postgres output mappings, use the Postgres workflow.

stackdome validate
stackdome whoami -o json
stackdome deploy --wait -o json
stackdome status -o json

Dashboard workflow

Every resource carries its own list of environment variables. You set them in the drawer, on its Environment tab. Some of them you type; the interesting ones you point at something else — an organization secret, a Postgres addon, or another resource in the same stack — and Stackdome fills in the value when it deploys.That difference matters more than it looks. A typed value is stored on the resource. A pointed-at value is stored as a connection between two things, and connections behave differently: they show up on the canvas, they stop you deleting what they point at, and they are resolved fresh on every deploy. This page covers both.

Dashboard prerequisites

A stack with at least one resource. If you do not have one, work through Deploy your first app first.
An organization secret, only for the Secret section. You create it on the way.
A Postgres addon, only for the Addon section. See Postgres.

The Environment tab

Open the stack, and on the Architecture tab click the resource’s node on the canvas. The drawer opens with three tabs — Configuration, Deployment, Environment. Choose Environment.

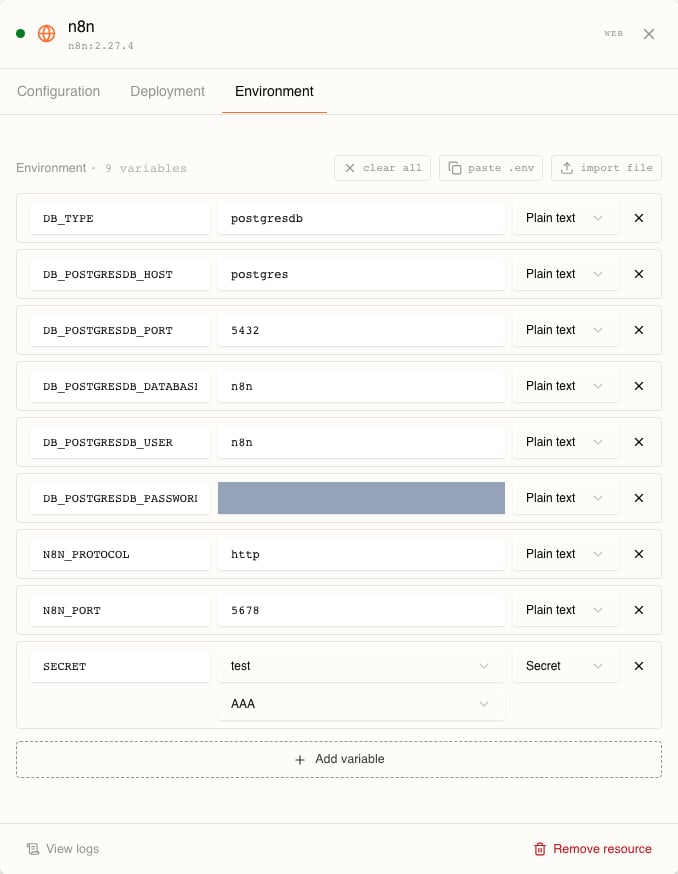

The resource drawer for a resource named n8n, Environment tab selected, headed Environment · 9 variables with clear all, paste .env and import file buttons. Nine rows each show a KEY box, a value box and a source dropdown reading Plain text, except the last row SECRET whose value area is two dropdowns reading test and AAA with the source set to Secret. One password value is covered by a grey redaction bar.

Every row has the same three columns:

Column	What it is
Key	The variable name the container sees. Monospace, placeholder `KEY`.
Value	Changes shape depending on the source. A text box for a typed value; one or more dropdowns for everything else.
Source	A dropdown that decides where the value comes from.

Above the rows sit three shortcuts — clear all, paste .env, import file — and below them Add variable, which appends a blank row set to Plain text.Edits here autosave into a draft. The header reads Saving… then All changes saved, and a pill appears over the canvas reading Apply N changes with Details and Deploy. Saved is not deployed — nothing reaches the cluster until you deploy. See Releases.

The five sources

Open the source dropdown on any row and you get exactly five choices:

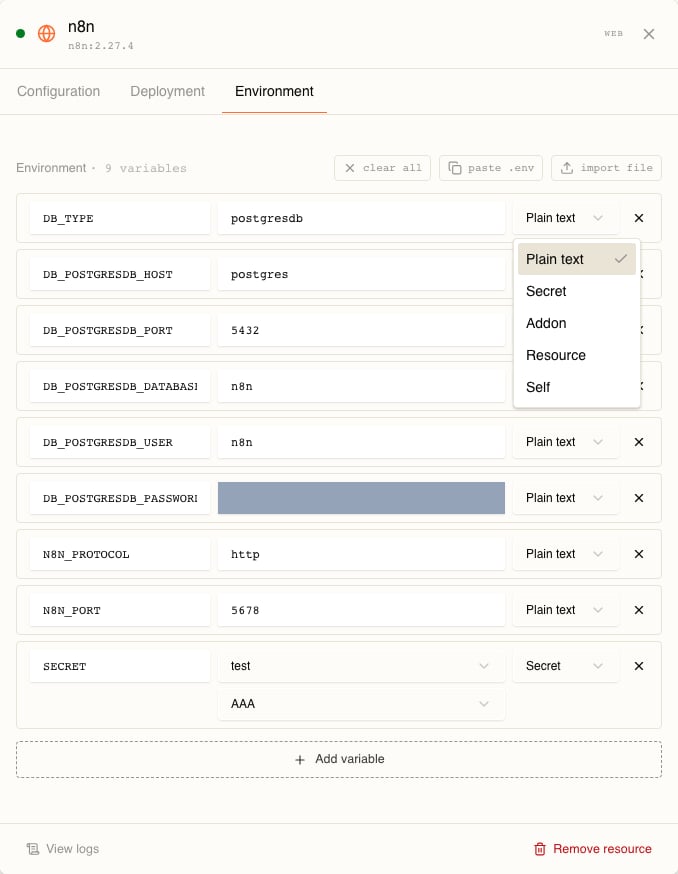

The same Environment tab with the source dropdown of the first row open, listing five options top to bottom: Plain text (ticked), Secret, Addon, Resource, Self.

Source	You supply	Value comes from
Plain text	the value itself	you
Secret	a secret, then one of its keys	an organization secret
Addon	an addon, a database, then a field	a Postgres addon’s credentials
Resource	another resource, then one of its outputs	that resource’s address
Self	one of this resource’s own outputs	this resource’s address

A sixth kind, Template, exists but is not in this list. It appears only on rows that already are one — see Template rows.

They are not stored the same way

Plain text and Self rows are stored as environment variables on the resource itself. Secret, Addon, Resource and Template rows are stored as stack connections — one connection per source, carrying a mapping per variable.You do not have to manage that split, but it leaks into what you can do:

	Plain text / Self	Secret / Addon / Resource / Template
Shows as an edge on the canvas	no	yes
Blocks deleting the thing it points at	—	yes, with a `409`
Grouped with other rows from the same source	no	yes, one connection per source
Re-resolved on every deploy	Self only	yes

The 409 is the part worth remembering. Deleting an organization secret that any stack references fails with secret 'X' is in use by ... and cannot be deleted, and a referenced addon fails the same way. Both the current draft and every past release count as a reference. Retyping a Plain text value, by contrast, is unconstrained — nothing tracks it.

Plain text

Choose Add variable, type a name in the key box and a value beside it. That is the whole flow.A plain text value is stored and delivered byte for byte. Nothing is substituted into it.

Braces in a plain text value are literal. If you type {{ and }} into the value box, the container receives those characters. Templating only happens inside a connection mapping, and the drawer cannot author one — see Template rows. To reach another resource, use a Resource row instead of typing its address.

To move a lot of variables at once, use paste .env — a textarea that takes KEY=VALUE, one per line, with # lines ignored — or import file, which accepts a .env upload. Both append Plain text rows. clear all removes every row on the resource, including the pointed-at ones, and does not ask for confirmation.Two rows on the same resource cannot share a name. A repeat is flagged inline as Duplicate name "...".

From a Secret

Values you would rather not have sitting in a stack’s spec go in an organization secret first, then get referenced.

Create the secret

Open Secrets under PLATFORM in the sidebar, at /secrets. The page is headed Secrets — “Manage sensitive data like API keys, passwords, and certificates” — with Create Secret top right, a Filter secrets… box, a TYPE filter defaulting to ALL, and a SORT control defaulting to RECENTLY CREATED. Existing secrets sit in an ORGANIZATION SECRETS panel, one row each: name, description, type badge, creation date, and a ⋯ menu.

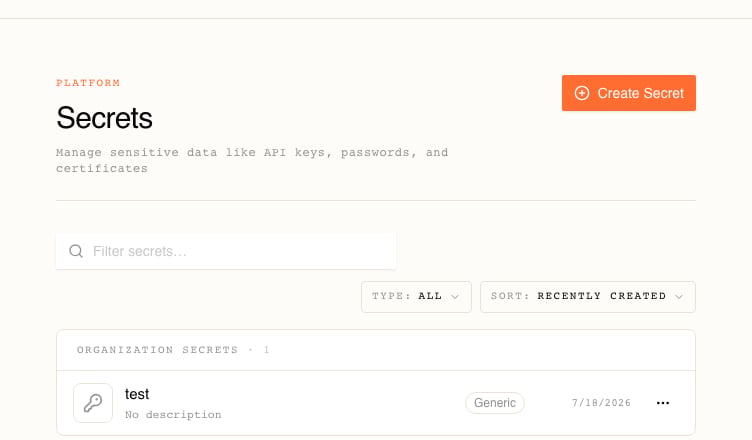

The Secrets page content column, headed PLATFORM Secrets with the subtitle Manage sensitive data like API keys, passwords, and certificates and a Create Secret button top right. Below it a Filter secrets field, a TYPE ALL dropdown and a SORT RECENTLY CREATED dropdown, then an ORGANIZATION SECRETS · 1 panel holding a single row: a key icon, the name test, No description, a Generic badge, the date 7/18/2026 and a three-dot menu.

Choose Create Secret. The dialog is short:

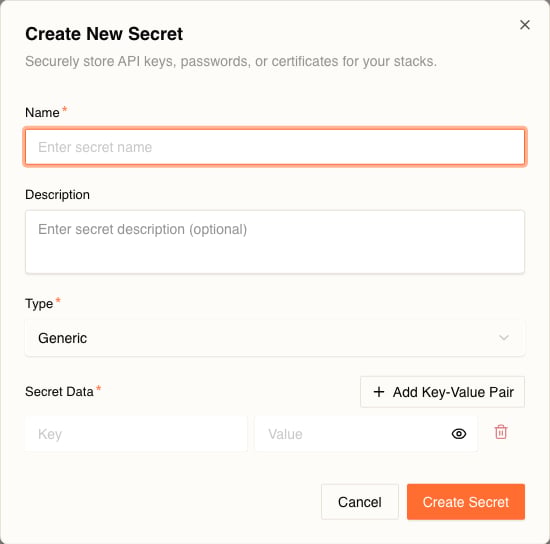

The Create New Secret dialog, subtitled Securely store API keys, passwords, or certificates for your stacks, with a required Name field placeholdered Enter secret name, an optional Description textarea, a required Type dropdown showing Generic, and a required Secret Data section with an Add Key-Value Pair button over one empty Key and Value pair, the Value field having an eye toggle and a delete icon. Cancel and Create Secret buttons at the bottom.

Field	Notes
Name	Required.
Description	Optional. Shown next to the name in the picker.
Type	Required. Generic, Docker Registry or Git Credentials.
Secret Data	Required. One or more key/value pairs. The value box is masked, with an eye icon to reveal it while you type. Add Key-Value Pair adds another.

One secret holds many keys, and you reference them one key at a time.

Only Generic secrets can back an environment variable. Docker Registry and Git Credentials secrets exist for pulling images and cloning repositories, and the environment picker filters them out. With no Generic secret in the organization, the picker reads No generic secrets available.

Reference a key

Back on the resource’s Environment tab: add a variable, name it whatever the container expects, and set the source to Secret. The value column becomes two dropdowns — the secret, then the key. SECRET in the first screenshot on this page is exactly that: the secret test, its key AAA.The value itself never comes back to you. Stackdome’s API returns ****** in place of every secret value, so the dashboard has nothing to show and no screen anywhere reveals a stored secret. You can overwrite a value, not read it.

Changed secrets need a deploy

Editing a secret does not touch anything already running. During a deploy, Stackdome writes the secret’s current values into the target namespace and points the resource’s container at that key; the container reads it when it starts. So:

Edit the secret. Nothing restarts.
Deploy the stack. The new value is written and the resource picks it up.

Every stack referencing the secret needs its own deploy. Until then each one keeps serving the value it started with.

From an Addon

Set a row’s source to Addon and it joins an addon group — a bordered block on the tab labelled Addon, with a dropdown for the addon and, when the addon has more than one database, a dropdown for the database. Rows inside the group share that choice, and Add binding adds another row to it.Each row then picks one field:

Field	Notes
`host`	Tagged cluster — identical for every database in the addon.
`port`	Tagged cluster.
`database`
`username`
`password`
`sslmode`	Tagged cluster.
`ca_certificate`	Tagged cluster.
`url`	A ready-made connection string.

Like a secret reference, these arrive as a reference to credentials held in the cluster rather than as a value copied into the stack, and they are refreshed on each deploy.An addon has to be linked to the stack before it shows up here; with none linked the picker reads No addons linked. Add one from the bottom panel.

Postgres

Create a managed Postgres addon, add databases to it, and link it to a stack.

From another Resource, or from Self

This is how one resource finds another without you hardcoding a hostname. Set the source to Resource, pick the resource, then pick which of its outputs you want. Self is the same thing pointed at the resource you are editing — pick an output, no resource dropdown.

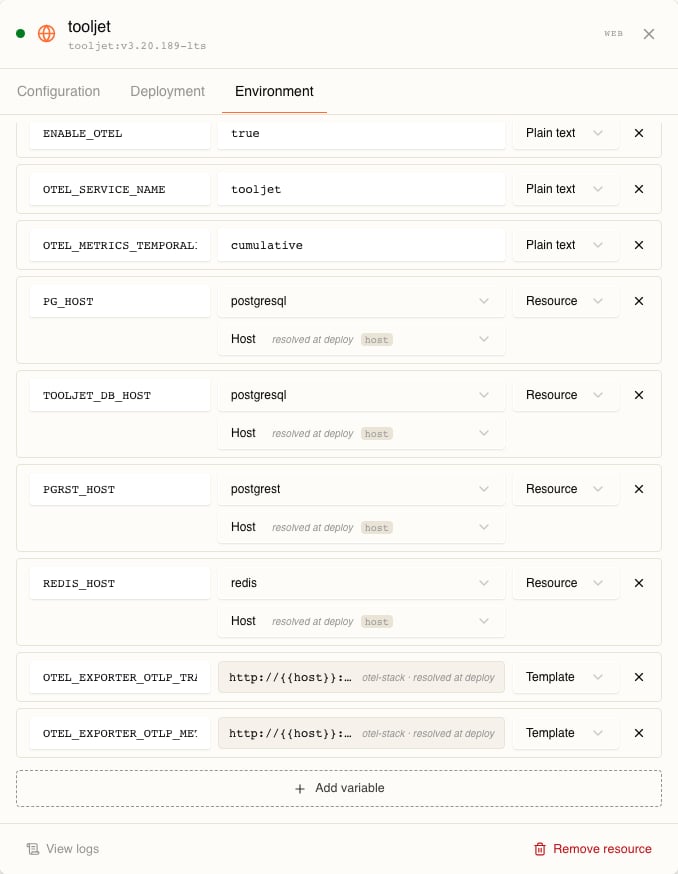

The Environment tab for the resource tooljet, scrolled to show four Resource rows — PG_HOST and TOOLJET_DB_HOST both pointing at postgresql, PGRST_HOST at postgrest, REDIS_HOST at redis — each with a second dropdown reading Host, resolved at deploy, host. Below them two Template rows whose value boxes show a monospace string starting http:// that is cut off by an ellipsis, each labelled otel-stack · resolved at deploy.

The outputs a resource offers are derived from its ports:

Output	Resolves to	Exists when
`host`	the resource’s in-cluster address, `name.namespace.svc`	always
`port`	the port number	the resource has a port
`url`	`http://host:port` for an HTTP port, `host:port` otherwise	the resource has a port
`public_host`	the generated public hostname for that port	the port is public and a hostname has been generated for it
`public_url`	`http://public_host`	the port is public and a hostname has been generated for it

The picker groups them under 🔒 Internal and 🌐 Public, labels them Host, Port, URL, Public Host, Public URL, and prints the raw key beside each along with the words resolved at deploy:

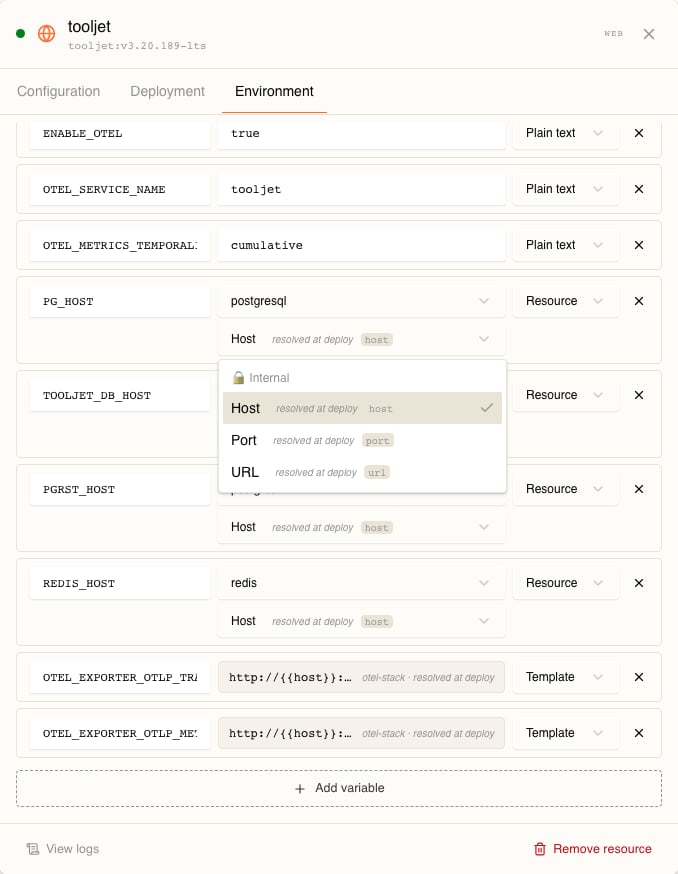

The same tab with the output dropdown open on the PG_HOST row, showing a group headed 🔒 Internal with three entries — Host (ticked), Port and URL — each annotated resolved at deploy and the raw key host, port and url. No Public group is present.

A resource with no public port has no 🌐 Public group at all, which is why the picker above shows only three entries — postgresql exposes 5432 internally and nothing publicly.

The two lists are not built from the same condition. The picker offers Public Host and Public URL for any port marked public. The values themselves only exist once Stackdome has generated a public hostname for that port, which needs an organization domain — see Domains and TLS. Point a row at public_url on a public port that has no hostname yet and the picker accepts it, then the deploy fails with unknown output 'public_url'. Fix the domain, not the row.

More than one port renames the outputs. With a single port the keys are plain: port, url. With two or more, each per-port key gains the port’s name as a suffix — port.http, url.http, public_url.http — so there is no ambiguity about which port you meant. host is per-resource and never suffixed.

A worked pair, both on the same resource:

PG_HOST is a Resource row pointing at the postgresql resource’s host — visible in both screenshots above. The resource gets the database’s in-cluster address without anyone typing a DNS name.

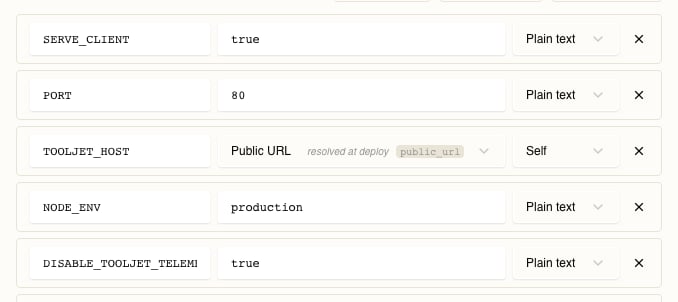

TOOLJET_HOST is a Self row pointing at public_url. It sits higher up the same tab, above the rows those screenshots are scrolled to:

Note the shape of that row: no text box, just the chosen output. The resource learns its own public address at deploy time, and it keeps working when that address changes.

Template rows

A Resource row substitutes one output as the entire value. When a variable needs an output inside a larger string, the underlying connection can carry a Go template instead — a string plus a map from template key to output name:

http://{{ host }}:4318/v1/traces

OTEL_EXPORTER_OTLP_TRACES in the screenshot above is exactly this, resolved against the otel-stack resource. Template keys must be valid identifiers — letters, digits and underscores, not starting with a digit.

You cannot author a template row in the drawer. The source dropdown offers five options; Template appears only on a row that already is one, and then it is greyed out. The row renders read-only, showing the template text and the resource it resolves against. Template rows come from importing a Docker Compose file or a stack template, where a value like ${db.host} in a longer string is converted for you.To edit one, delete it and rebuild the value another way.

What happens at deploy

Deploying takes a snapshot of the stack and resolves it — that snapshot is what runs, so later edits do not leak into a release in flight. Resolution walks every row:

Plain text — copied through unchanged.
Self — the output is looked up on the resource itself and becomes a literal value.
Resource / Template — outputs are looked up on the source resource; a template is executed against them.
Secret / Addon — the values are written into the stack’s namespace and the variable is pointed at them by name, not copied into the manifest.

If resolution cannot finish, the release fails and the reason is on its timeline. The messages you are most likely to meet:

Situation	What you see
Two connections into the same resource map different sources onto one variable name	`duplicate env var name 'X': check connections that target this resource for overlapping mappings`
A row points at an output the source no longer has — a port was removed or made private	`unknown output 'X'`
A Self row points at an output this resource no longer has	`unknown self output 'X'`
A template’s braces do not parse	`invalid template: ...`
An addon or the database inside it is gone	`postgres addon 'X' or database 'Y' not found`

An addon whose credentials are not ready yet is not a failure — the release waits and retries.

The messages in this table are read from Stackdome’s resolver, not reproduced by breaking a live stack. Wording may differ slightly by version; the situations are what matter.

The drawer catches the cheaper mistakes before you ever deploy, inline on the row: Required for a missing name, Duplicate name "...", and Pick a secret, Pick a key, Pick an addon, Pick a database, Pick a field, Pick a resource, Pick an output for a half-finished reference.

Releases

Why a saved change is not a deployed change, and how to read a release.

Postgres

The addon whose credentials the Addon source reads.
