Deploy using the dashboard

​

Prerequisites

• A Stackdome installation you can sign in to. If you need to create one, install Stackdome on your own infrastructure. For the recommended agent-led path, use Quickstart with a coding agent.
• A repository with a Dockerfile. Stackdome builds your image from a Dockerfile in the repository, so the repository needs one. This page uses a public sample:
  https://github.com/dockersamples/linux_tweet_app.git

  It is a few kilobytes, its Dockerfile sits at the repository root, and it serves a static page on port 80:
  FROM nginx:latest

  COPY index.html /usr/share/nginx/html
  COPY linux.png /usr/share/nginx/html

  EXPOSE 80 443

  CMD ["nginx", "-g", "daemon off;"]

  Use it verbatim to follow along, or substitute your own repository and adjust the port in step 4.
• A connected git provider — only for private repositories. A public repository needs no credentials: you paste its URL and Stackdome clones it anonymously. To build from a private repository, connect a provider under Git providers first, then pick the repository from the list instead of pasting a URL. See Deploy from git.

1

Create a stack

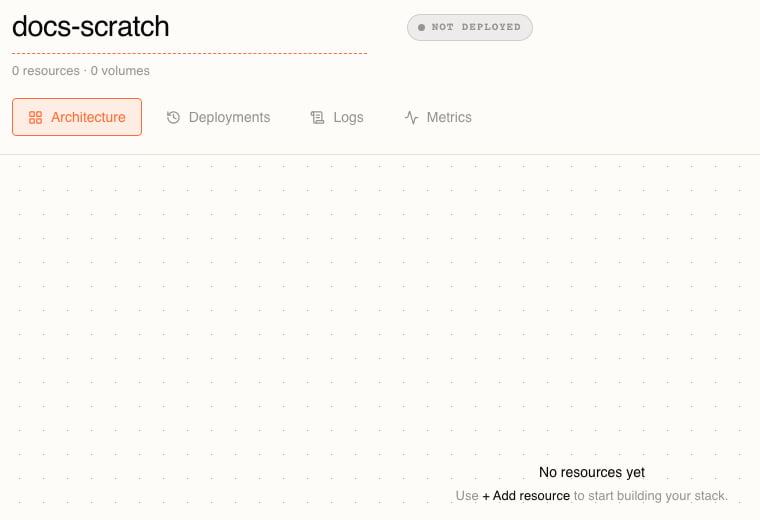

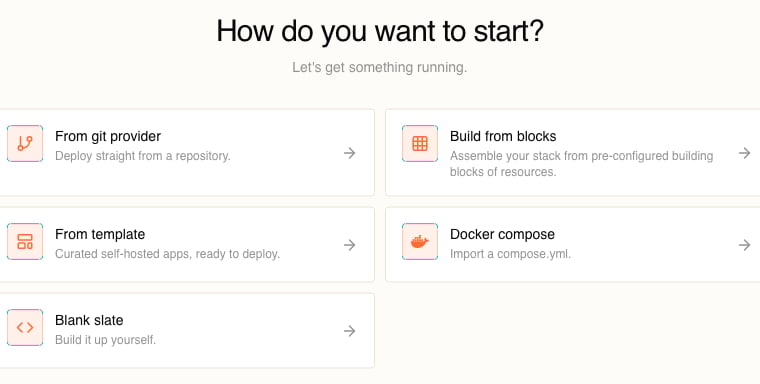

From Stacks, press New Stack. Stackdome asks how you want to start:Every option lands you in the same editor; they differ only in how much they fill in for you. Choose Blank slate so you can see each piece as you add it — once you know the shape, From git provider gets you to the same place in fewer clicks.You are now on an empty canvas on the Architecture tab, with the stack name as an editable field at the top. Type a name — lowercase, with hyphens if you want them:

docs-scratch

The badge reads NOT DEPLOYED and the summary reads 0 resources · 0 volumes. Nothing exists on the server yet — everything you do until you press Deploy is a draft held in your browser.

2

Add a resource

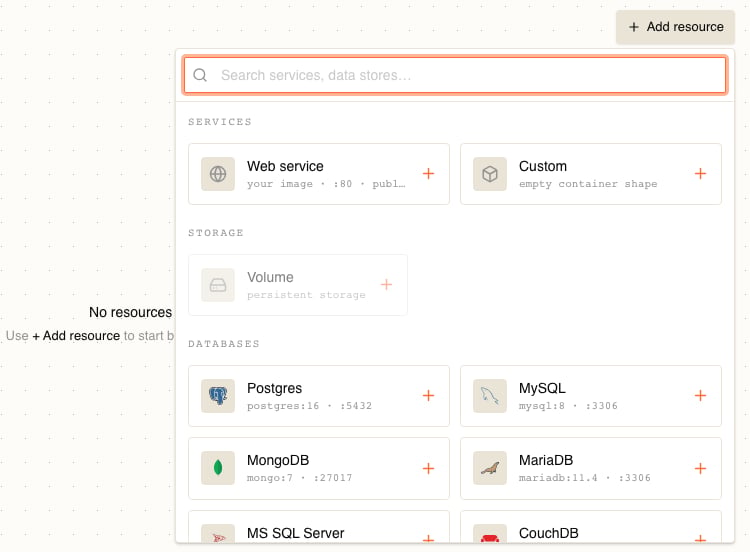

Press + Add resource. The menu groups everything Stackdome can drop on the canvas: SERVICES, STORAGE, DATABASES, CACHE, SEARCH & ANALYTICS, and MANAGED ADD-ONS.Choose Web service, described as your image · :80 · public. It is a template: it creates one resource named web with a single public port 80, which is exactly the shape you want. The canvas now holds one node and the summary reads 1 resource · 0 volumes.

3

Point the resource at your repository

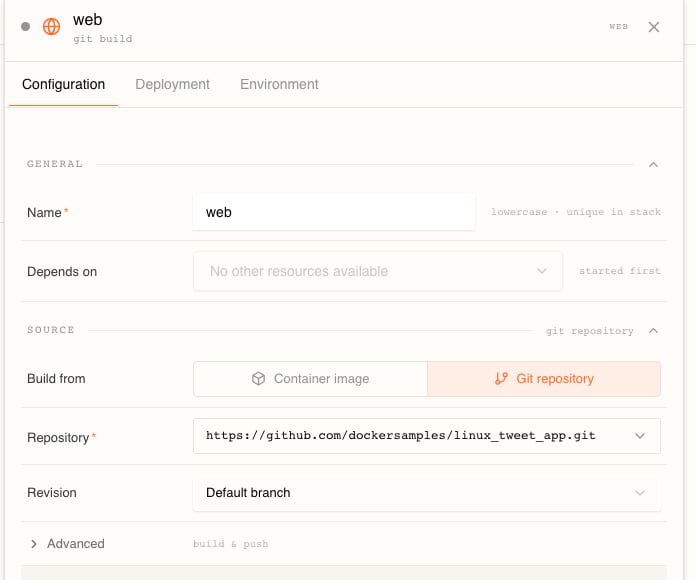

Click the node to open its drawer on the right, on the Configuration tab. Under Source, Build from starts on Container image — press Git repository instead.The Repository field reads Select repository or enter URL. Click it, paste your repository URL into the search box, and choose the entry that appears: Use "https://github.com/dockersamples/linux_tweet_app.git" as repository URL. Leave Revision on Default branch.Two things confirm it took: the Source section is now summarised as git repository, and the node on the canvas reads git build where an image reference would otherwise sit — visible on the node in the next two steps.That is the whole source configuration. The Advanced row underneath holds the build & push settings — the Dockerfile path, the build context, and where to push the finished image — and their defaults are Dockerfile, ., and the deployment destination’s default build registry. You only open it if your Dockerfile is not at the repository root.

4

Check the port

Scroll down to Ports in the same drawer. The Web service template already filled it in.Read it left to right: port number 80, protocol HTTP, and public switched on. The section summary reads 1 exposed.

• The number must be the port your app listens on inside the container. The sample serves on 80, so leave it. If your app listens on 3000, type 3000.
• public is what earns you a URL. Leave it off and the port is reachable only by other resources in the same stack — the summary then reads 1 internal instead.
• You never type a port name. Stackdome derives one from the number.

The port is plain HTTP. Stackdome terminates TLS at the edge, so your resource does not need a certificate — see Domains and TLS.

5

Deploy

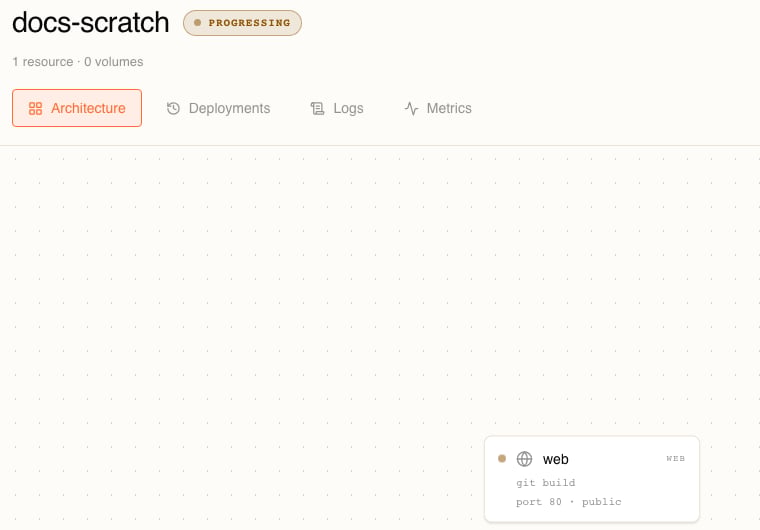

Press Deploy (or ⌘↵). On a draft, that one button does two things: it creates the stack — a single declarative apply that validates the whole document and creates the stack and its resources in one transaction, so a rejected deploy leaves nothing behind — and then it starts the first release.A Deploy started toast appears, the address changes from /stacks/new to /stacks/{id}, and the badge moves from NOT DEPLOYED to PROGRESSING. From here the stack exists whether or not the release succeeds, so you can close the tab and come back.

6

Watch the release

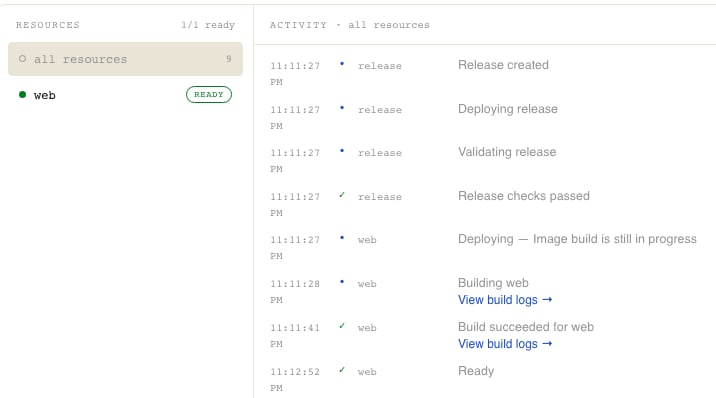

Open the Deployments tab. Deploy timeline shows release #1, Manual deploy, with three stages — Build, Deploy, Ready — that tick over as it goes, and an activity log of every event underneath.When it finishes, the release is marked LIVE and stamped with the exact commit it built. A release always records that commit, which is what makes a rollback meaningful — see Releases.Underneath, a resources panel counts what is ready and the activity log accounts for every second of the deploy:Read the timestamps and you can see where the time went: the image build took 13 seconds — it is a small Dockerfile — and the pods took another 71 to come up and report ready. One more line follows Ready, below the fold: Release is live. Your own numbers depend on how heavy your build is; a first build with no cache is the slow one.Every Building and Build succeeded entry carries a View build logs link, which is where you look first if a build fails.

7

Open the URL

The stack header has grown a PUBLIC row listing the resource and the hostname Stackdome generated for it. The header sits above the tabs, so it is there whichever tab you are on.The hostname is built from three parts:

<token>.<resource-name>.<your-domain>

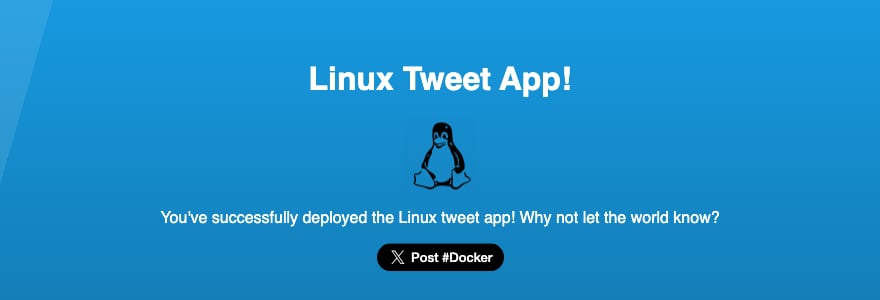

The token is a short, stable hash of the stack, the resource, and the port number, so the address does not change under you as long as those three stay the same. <your-domain> is the domain configured on your organization; if you would rather serve this on a name you own, that is Domains and TLS.Click the hostname. Your app is live, over HTTPS:

​

What you have now

​

Next steps
