A stack is what you edit. A release is the fixed, identifiable result of one deployment attempt. Use its ID to follow events and its state plus stack health to decide whether that attempt is serving successfully.

​
Identify and verify a release

List the releases for the current stack, newest first:
Use structured output to retain full IDs for later commands:
release list returns release summaries. release info returns the detailed release, including its state, message, cause, validation errors, pins, outcome, snapshot, and live status when the release is active or currently serving. A release is terminal when state is Released, Failed, Superseded, or Cancelled. Released proves that release converged at some point; it does not by itself prove the release is still serving or healthy. For the current deployment, also run:
Require converged_release.id to match the release ID, converged_release.state to be Released, and converged_release.health to be ok. Before claiming that release is also the newest attempt, require latest_release.id to match it and latest_release.state to be Released. See inspect stack status for the full check. Every release subcommand accepts --stack <name> to override the current stack context.

​
Follow release events

Read the recorded events once:
Or follow new events while a deployment progresses:
Without --follow, structured output is an array of release events. With --follow -o json, the CLI emits newline-delimited envelopes containing event and data; process one line at a time. Events include timestamped stack or resource messages, levels, and links such as a build ID. Use a build ID with the build-failure guide instead of searching runtime logs for build output.

​
Cancel a pending release

Cancellation is available only while a release is Pending:
The cancel command exits after the API accepts the request and prints confirmation to stderr; it does not return a structured result. Verify the terminal state with release info.
Cancellation exit codes are not uniform in the current CLI. A successful release cancel request exits 0, while deploy --wait exits with general-error code 1 if the release ends as Cancelled. Exit code 130 is reserved for local user-cancel paths such as interrupting a deployment wait; do not use it as the only test for a cancelled release.

​
What a release is

A release is one deploy of one stack. It has an API ID and a human sequence number scoped to that stack — #1, #2, #3. It carries a complete copy of the stack as it was at deploy time: every resource, its source, its ports, its environment, every volume and every mount, and the connections between nodes on the canvas. It also carries the artifacts those resources resolved to:
  • A resource with a git source pins the commit the revision pointed at. main moving on does not change the release.
  • A resource with an image source pins the image digest behind the tag. postgres:16 being re-published does not change the release.
That pinning is the point. A release is a fixed thing you can identify, compare, and return to. Editing the stack afterwards never quietly changes what is running — your edits collect as a draft and take effect on the next deploy. So the release timeline is an honest record: #4 is what #4 was.

​
How a release reaches convergence

Every deployment follows the same product-level stages:
  1. Snapshot and pin the stack definition and its artifact coordinates.
  2. Validate the snapshot, attaching any errors to the affected resource and field.
  3. Apply the desired application state to the deployment destination.
  4. Converge only when every resource reports ready for this release’s revision.
The last stage is strict: a per-resource partial pass is not a released stack. If you operate a self-hosted installation and need the Kubernetes custom-resource mapping behind apply and convergence, see Self-hosted architecture.

​
Deploying from the dashboard

You deploy from the canvas, on the Architecture tab. Once you have unshipped edits, a pill appears above the canvas:
  • Apply 1 change (or Apply 3 changes) counts what is in your draft.
  • Details opens the diff, so you can read the change before it ships.
  • Deploy ships it. Cmd/Ctrl + Enter does the same thing.
  • The ··· menu next to it offers Discard draft changes if you would rather throw the draft away.
While a deploy is in flight, and afterwards, the Deployments tab shows the deploy timeline. If you have unshipped edits, a Staged changes node sits at the top of the rail, above the newest release, marked vs #2 against the release it differs from.

​
Status

Each release has one state. These are the values the API returns, and the words the rest of this documentation uses: Released, Failed, Superseded, and Cancelled are final — a release in one of those states never changes again. The timeline is deliberately quieter than that list. It labels only what you need to notice:
  • LIVE, on the one release that is currently serving traffic. This is the release Stackdome last converged on, which is not always the newest one — if your latest deploy failed, LIVE stays on the release before it.
  • FAILED, with a Deploy failed box in the release’s card carrying the reason, for example timed out waiting for convergence after 15m0s.
  • DEPLOYING while a release is Pending or InProgress.

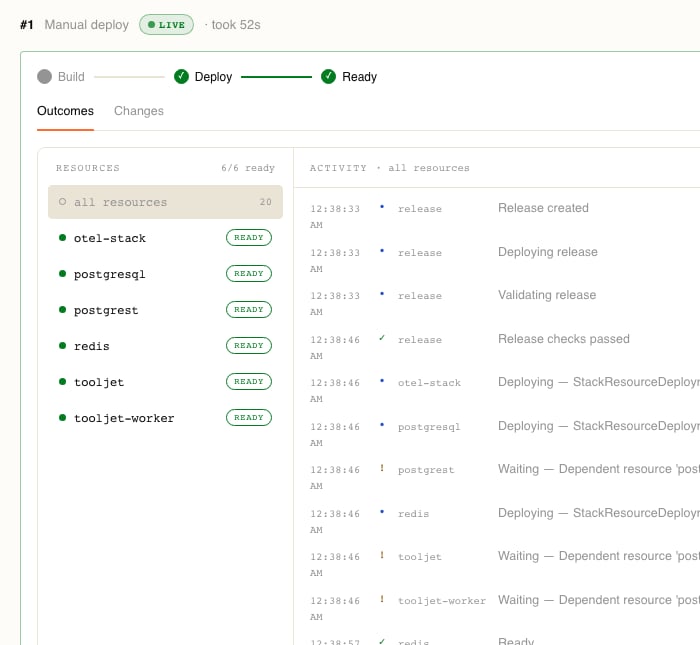

A release that succeeded but has since been replaced carries no label at all — just its number, its cause, its commit and how long it took. Same for Superseded and Cancelled releases, which instead show their reason as the row’s subtitle, such as Release superseded by release #2.A close crop of an expanded release in the deploy timeline: the row reads release number 1, Manual deploy, LIVE, took 52s, above a Build, Deploy and Ready tracker with Deploy and Ready ticked, the Outcomes and Changes tabs, a RESOURCES panel reading 6 of 6 ready with otel-stack, postgresql, postgrest, redis, tooljet and tooljet-worker each marked READY, and the left part of the ACTIVITY console listing timestamped release and per-resource events from Release created onwards, longer event messages running past the right edge of the cropEvery row also names what triggered it, and there are two things it can say: Manual deploy when you pressed deploy, and Rollback to #2 for a rollback. That is the whole list, because a release only ever comes from you asking for one — pushing to a branch does not deploy. The single exception is a preview environment, whose releases Stackdome creates for you as the pull request moves.

​
Inside a release

Expanding a release opens its card:
  • A Build → Deploy → Ready tracker across the top. Build is inert for a stack whose resources all come from images — there is nothing to build — and ticked for one with git build resources.
  • Outcomes, which is the default view: a RESOURCES panel counting how many are ready (6/6 ready) with each resource’s state beside it, and an ACTIVITY console of everything that happened, timestamped. Click a resource in the panel to filter the console to just that resource, and all resources to zoom back out.
  • Changes, which diffs this release’s configuration against the previous one — resources, volumes, and connections — headed vs #3.
A release that is still in flight streams its activity into that console as it happens. A finished one shows the same console, replayed from what was recorded.You can also stop a deploy: the release’s ⋮ menu offers Cancel release while it is Pending. Once it is InProgress the rollout has already started, so cancelling is no longer offered — deploy again, or roll back through the dashboard. A stack keeps its recent releases and prunes the rest: 10 by default, always keeping at least 5 successful ones. Both are per-stack settings. So is the deploy timeout, 15 minutes by default.

​
Logs

Two different things are worth reading, and they live in two places.Runtime logs are on the stack’s Logs tab. It opens one stream for the whole stack, tagged per line with the resource that wrote it, and it shows CONNECTED while the stream is live. Narrow it with:
  • Resources — a multi-select of the resources in the stack, searchable, so you can watch one or a few.
  • The time-range control — Live Tail (4h) follows new lines as they arrive; Last 30 minutes, Last 1 hour, Last 4 hours, Last 24 hours and Since beginning look backwards instead.

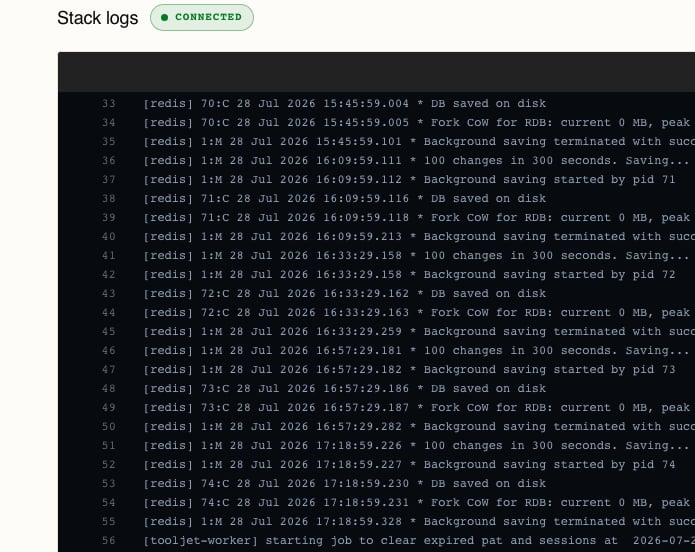

  • The panel’s own search box, which highlights matches and counts them. A close crop of the Logs tab: the heading Stack logs with a CONNECTED pill, above a dark terminal panel of numbered log lines each prefixed with the resource that emitted it, a run of redis lines followed by the first tooljet-worker line, with the Resources filter and the time-range control outside the crop
Build progress is on the release instead, in that release’s activity console, as events against the resource being built: Building web, then Build succeeded for web — or the failure, with the reason, if it did not. That is where you look when a deploy stalls before anything starts running.

​
Metrics

The Metrics tab shows live usage for the running stack, refreshed continuously with the time of the last update:
  • STACK CPU in millicores and STACK MEMORY in mebibytes for the stack as a whole, each with a short sparkline of recent samples.

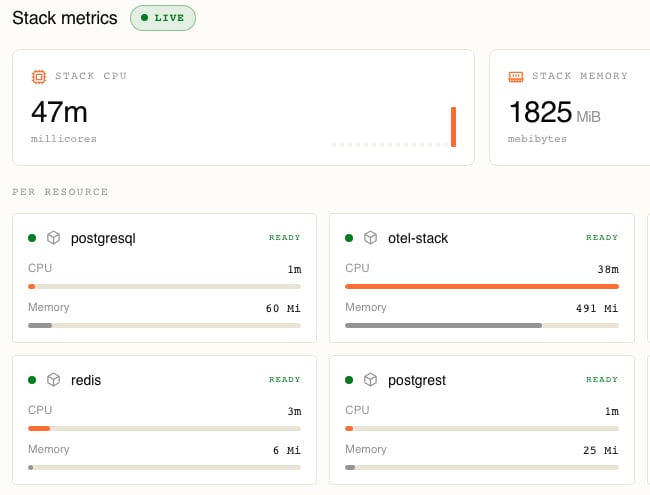

  • A PER RESOURCE card for each resource, with its state and its own CPU and memory reading. The bars compare resources against each other, not against a limit. A close crop of the Metrics tab: the heading Stack metrics with a LIVE pill, a STACK CPU card reading 47m millicores and a STACK MEMORY card reading 1825 mebibytes, and four of the six PER RESOURCE cards — postgresql, otel-stack, redis and postgrest — each marked READY with its own CPU and memory readings and bars; the tooljet and tooljet-worker cards sit outside the crop

​
Rolling back

A release you can name is a release you can return to.
Rollback is dashboard-only in the current CLI. There is no stackdome release rollback command. Use the dashboard steps below.
  1. Open the stack and go to Deployments.
  2. Find the release you want to be running again.
  3. Open its ⋮ menu — the one at the right of the row — and choose Rollback to this.
The option is only offered on a release that reached Released. A Failed, Superseded, or Cancelled release never ran to completion, so there is nothing there to return to, and its menu offers only Copy release ID.A close crop of a deploy timeline with four releases, newest first — number 4 reading Rollback to number 2, labelled LIVE, took 27s, then releases 3, 2 and 1, each a Manual deploy with its own duration — with the per-row menus at the right of each row outside the crop What the rollback does is create a new release, reusing the old one’s snapshot and its pins. History moves forward, never backwards: the rollback gets a new sequence number and becomes live once Stackdome converges on it. Because the pins come along, the same commit and the same image digests are deployed — nothing is rebuilt and nothing is re-resolved, which is why a rollback is usually much faster than the deploy it undoes. Two things a rollback does not do:
  • It does not touch your data. Volumes, addons, and anything written inside them are unaffected. Rolling back reverts configuration and code, not state.
  • It does not discard your draft. Unshipped edits stay staged, and are still waiting the next time you look at the canvas.
Because a Released release stays a valid rollback target, Stackdome protects what it references: while it is still in the stack’s history, the secrets, volumes, and addons it depends on cannot be deleted out from under it.
